Chiltern Steam
Model Engineering > Boilers

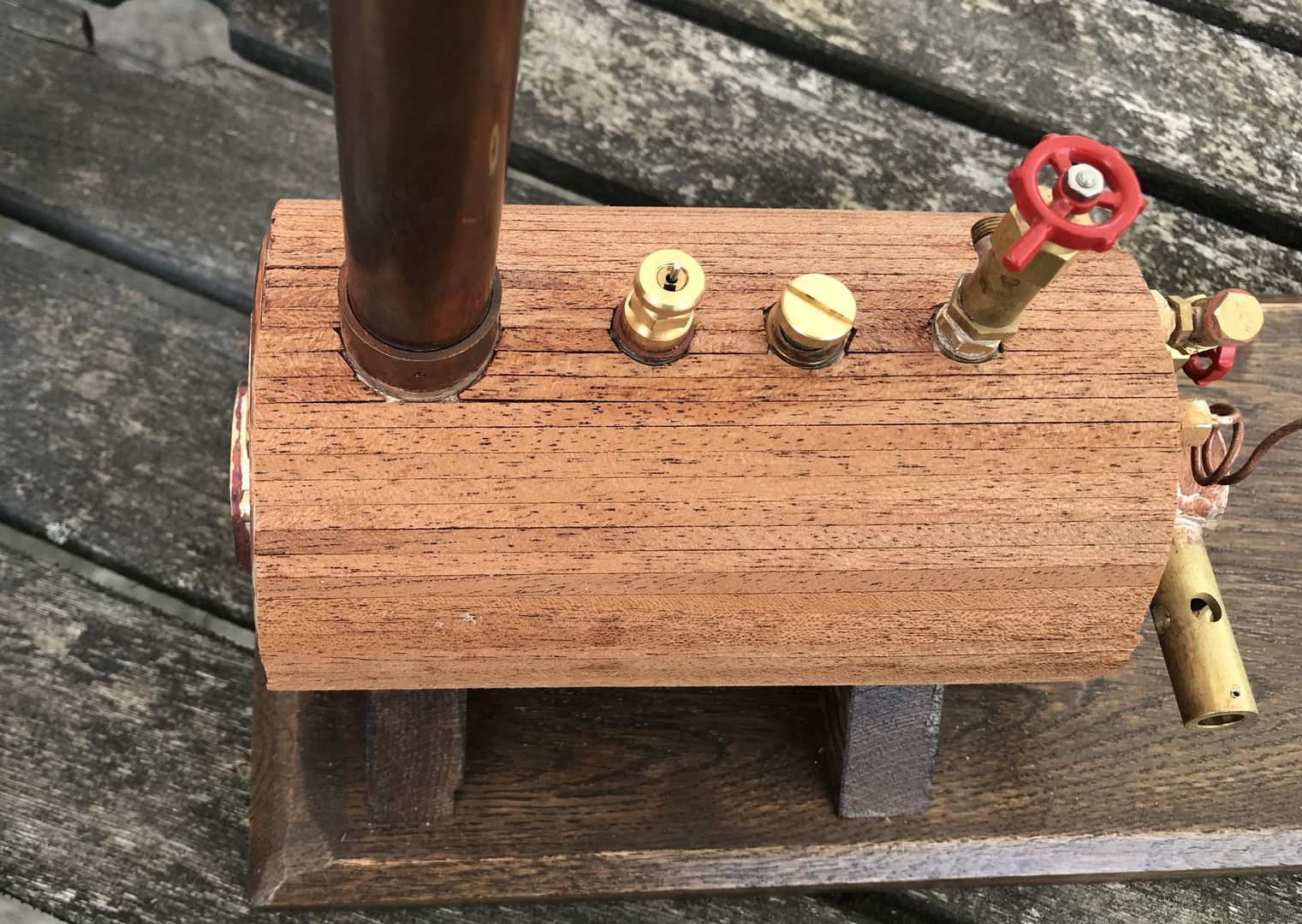

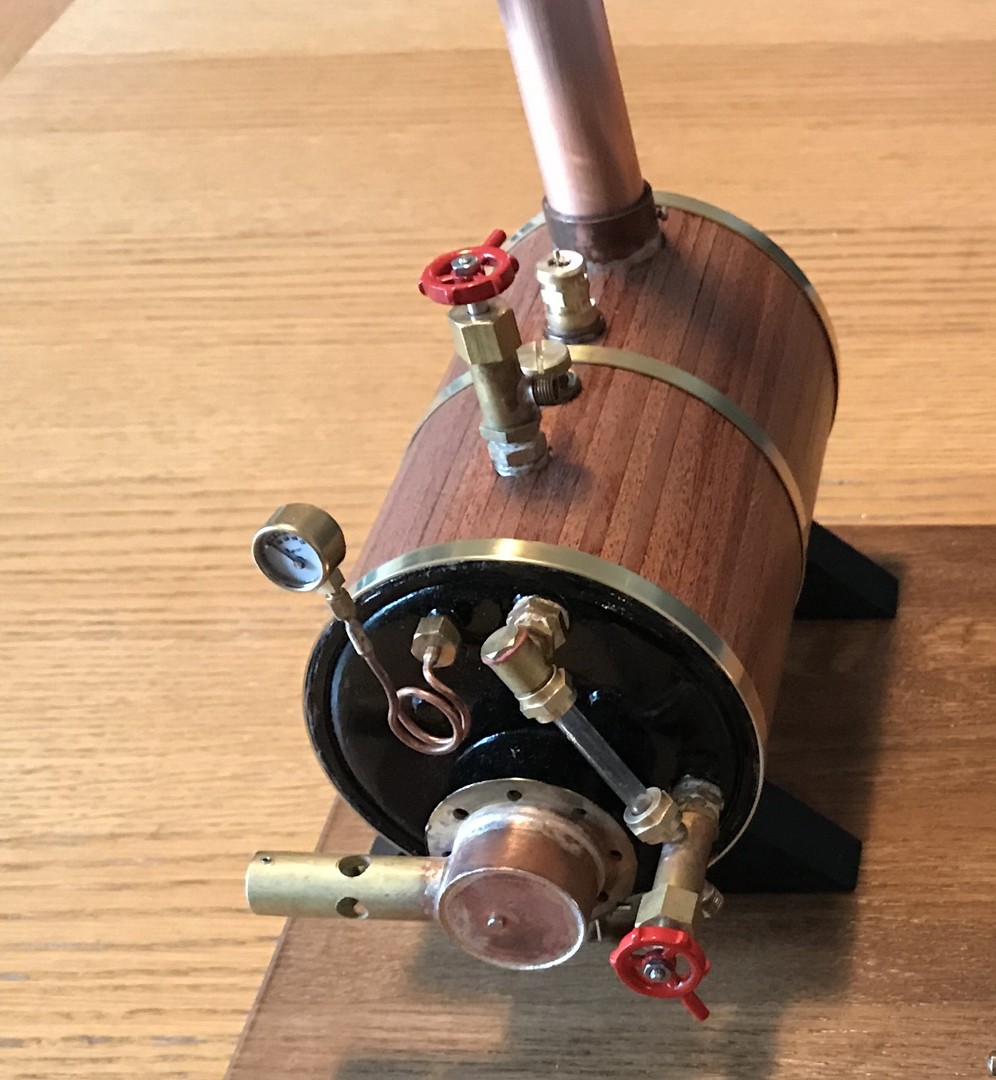

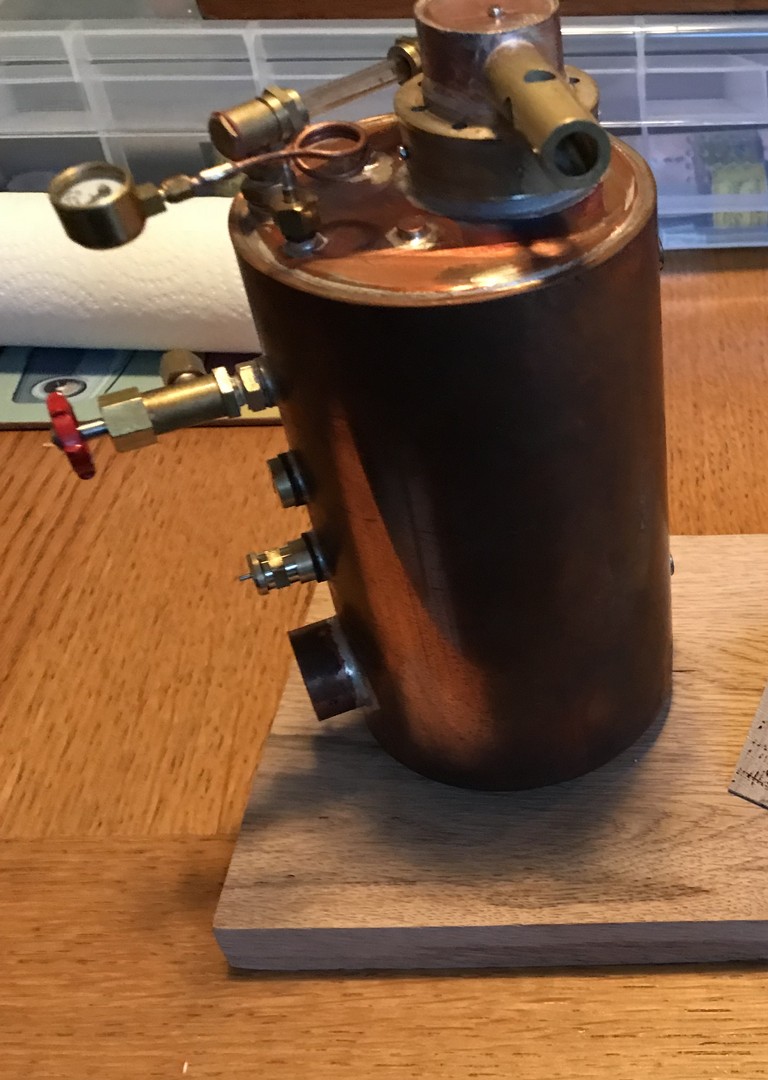

Lovely boiler from Chiltern Steam.
Their Specifications:
TYPE: HORIZONTAL CENTRE FLUE
DIAMETER: 3.5" (89MM)
OVERALL LENGTH (INCLUDING BURNER): 7.5" (190MM)
LENGTH OF PRESSURE VESSEL: 6" (150MM)
FLUE TUBE DIAMETER: OUTER 38MM
NUMBER OF CROSS TUBES: 9
NUMBER OF LONGITUDINAL STAYS: 2
OUTER SHELL THICKNESS: 10G (2.5MM)
APPROXIMATE CAPACITY: 800ML
MAX WORKING PRESSURE: 60PSI (4BAR)
TEST PRESSURE: 120PSI (8 BAR)
WEIGHT INCLUDING BURNER: 1.9KG
BURNER HEAD DIAMETER: 1.125" (28MM)
FUEL: BUTANE OR BUTANE/PROPANE MIX
GAS JET CARRIER: DIA 8MM WITH NO. 5 JET
BUSHES IN BACKHEAD FOR THE WATER GAUGE: 2 OFF 1/4"X40TPI
BUSH FOR PRESSURE GAUGE: 1 OFF 3/16"X40TPI
BUSH FOR SAFETY VALVE: 1 OFF 5/16"X26TPI
BUSH FOR STEAM OUTLET: 1 OFF 1/4"X40TPI
BUSH FOR FILL PLUG OR ADDITIONAL OUTLET: 1 OFF 5/16"X32TPI
BUSHES TAPPED M4 FITTED ON BOILER BASE TO ALLOW MOUNTING ON CRADLES: 2 (BLIND)
ESTIMATED STEAM OUTPUT: 600 CU INS/MIN (9832ML/MIN) AT 50PSI USING 65/35 MIX GAS
