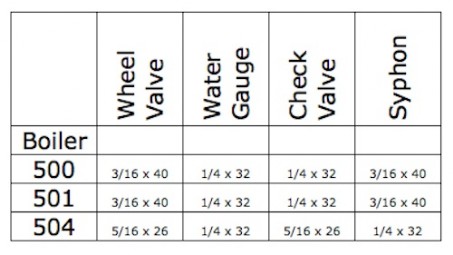

I have previously found it difficult to find details of the various thread sizes of different Stuart engines - in particular some of the older models.

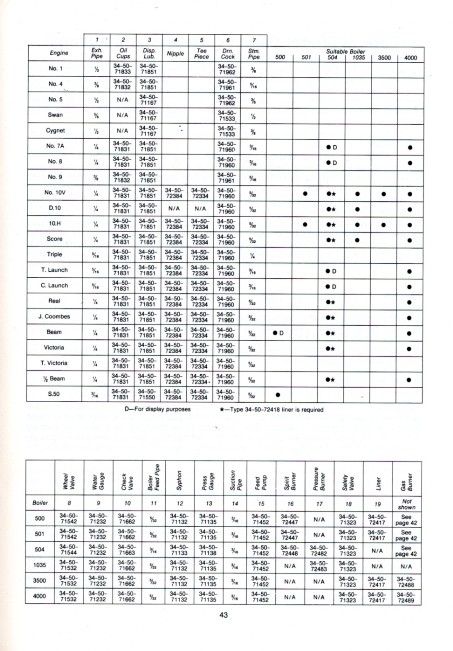

I hope the images alongside will help. i will add more as soon as I can.

Other potentially useful notes...

Stuart 500 Boiler fittings
Wheel Valve 34-50-71542
Water Gauge 34-50-71232
Check Valve 34-50-71662
Syphon 34-50-71132
Pressure Gauge 34-50-71136
Safety Valve 34-50-71323

From Stuart Models Nay 2018
